Cashew Nut Shell Liquid (CNSL oil, Cashew Shell Oil, CNSL Resin) is a bypass-product of the cashew processing factory. The cashew Nut Shell take up 70 % weight of raw cashew nut. The cashew Nut Shell has a shell of about 1/8-inch thickness inside which is a soft honeycomb structure containing a dark reddish brown viscous liquid. It is called cashew nut shell liquid (CNSL), which is the pericarp fluid of the cashew nut. Cashew nutshell contains up to 25 – 35% oil, this is a precious oil also known as cashew nut shell oil, which is being imported from many countries around the world. Last year, Viet Nam exported more than 600,000 tons of cashew oil. Mainly market to China, South Korea, Indonesia, and Spain. Previously, China was the main market, but now Korea is leading. CNSL cashew supplier, CNSL cashew shell oil & Cashew Supplier In Vietnam.
CNSL Specification:
| Specifications | Units | Methods of analysis | Results |
| 1. Net Calorie | Kcal/kg | ASTM D240/IP 12 | 9.500 min |
| 2. Density at 25 oC | Kg/L | ASTM D1298 – 05/IP 160 | 0.95 – 0.97 max |
| 3. Viscosity at 25 oC | Pas | ASTM D 445 – 06/IP 71-1 | 160 -220 |
| 4. Ash Content | % | ASTM D 482 – 03/IP 4 | 1.0 max |
| 5. Insoluble Impurities | % | ASTM D 473 / IP 53 | 1.00 max |
| 6. Total Volatile loss | % | NTM-69 | 0.80 max |
| 7. PH | % | PH Paper | 6.50 – 9.0 |
Diesel vs Ethanol vs CNSL Biofuel, Which Better?
| Properties | Diesel | Ethanol | CNSL |
| Density (kg/m3) | 0.84 | 0.789 | 0.9326 |
| Kinematic viscosity (cost) | 2-5 | 1.19 | 17.2 |
| Calorific value (kJ/kg) | 42000 | 30000 | 47600 |
| Flashpoint (°C) | 62 | 16 | 193 |
| Auto-ignition temperature (°C) | 210 | 362 | 206 |
Cashew nut shell liquid is process from cashew shell, Cashew shell -> pressing -> filter -> refined CNSL, have more application in industrial as follow:
- Paints, enamels and varnishes
- Thickeners in paints, cosmetics, oils, food and textiles
- Electrical insulating varnishes
- Auto brake lining
- Substitute for linseed oil (in manufacturing foundry core oil, which is used as a binder)
- Cement hardening agent Used in lamination industry (for reduced brittleness and improved flexibility)
- Adhesive
- Epoxy resins
- Rubber compounding resins

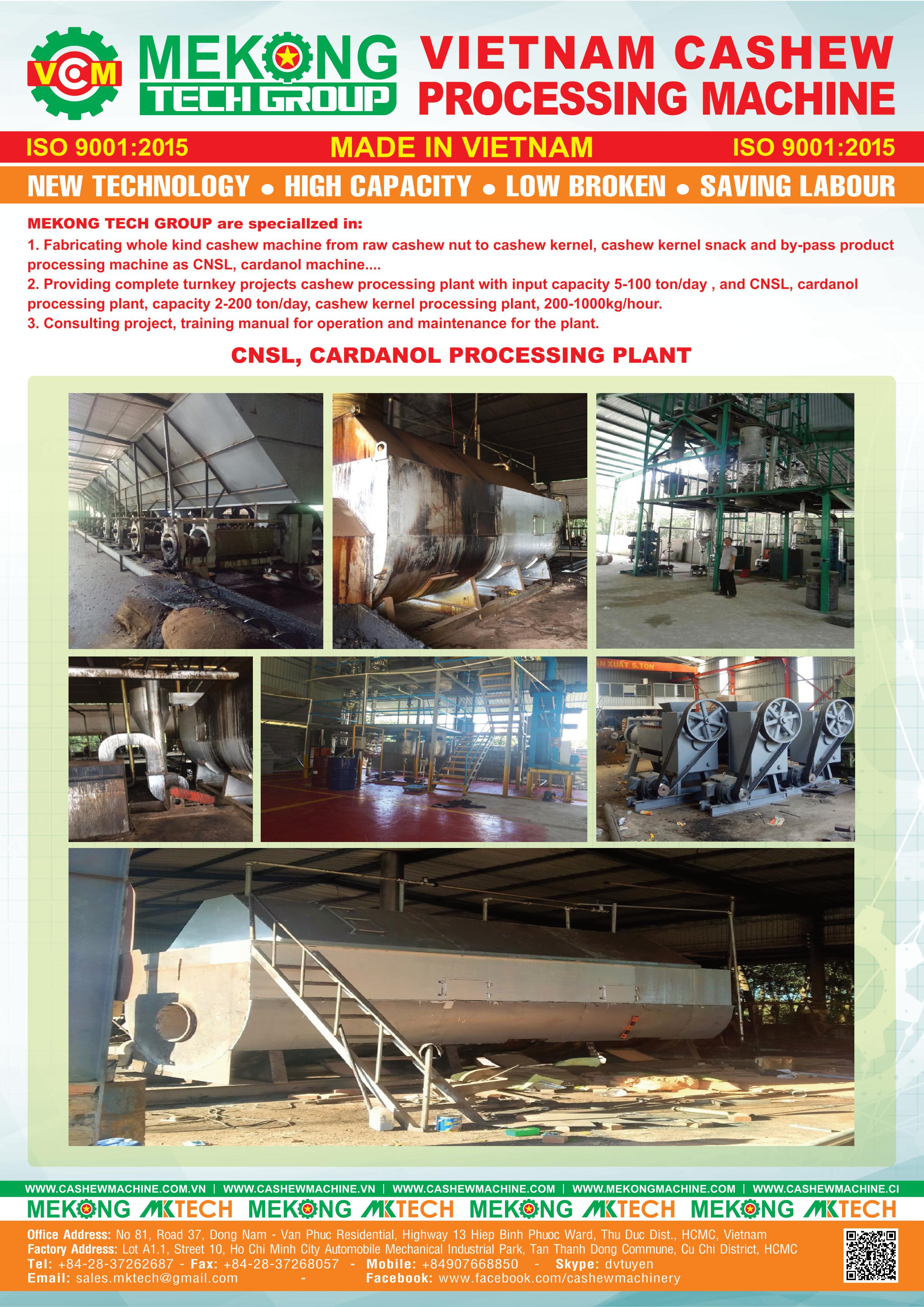

MEKONG TECH manufacture whole kind machine for processing cashew shell, and supply tern key for Cashew shell processing plant
- Cashew shelling oil pressing system
- CNSL refined system
- Cardanol processing system
Specification:
- Input capacity: 1. 2 -10 ton/hour (Cashew shell)
- Fuel: wast cashew shell
- CNSL: 1 ton/hour
- Power Source: 300 kw/hour
- Dimension for install machine: 30 x 45 m
- Ware house: 40 x 60 m
- Number labour: 10 labour
